The Heart of Hydraulics: Understanding the A2FE Piston Motor
The A2FE Piston Motor functions as an axial piston fixed motor. Engineers specifically designed this motor for hydrostatic drives in both open and closed circuits. It features a robust design and high power density. This motor efficiently converts hydraulic energy into mechanical rotational energy. It performs this task with high reliability. Piston motors typically demonstratehigh efficiency in energy conversion, as shown below.
Key Takeaways
- The A2FE Piston Motor changes hydraulic energy into spinning power.
- This motor has a fixed displacement, meaning its power output is steady.
- It works well in both open and closed hydraulic systems.
- The motor is small for its power and built to last a long time.
- It runs smoothly and works at many different speeds.
- You can find this motor in construction machines, farm equipment, and cranes.
- It handles high pressure and fits easily into other machines.
What is the A2FE Piston Motor?
Defining the Axial Piston Fixed Motor
Understanding Axial Piston Technology
Axial piston technology forms the foundation of many high-performance Hydraulic Motors. This design utilizes pistons arranged parallel to the motor's axis of rotation. These pistons reciprocate within a cylinder barrel. The movement of these pistons, driven by hydraulic fluid, generates the rotational force. This efficient conversion of hydraulic pressure into mechanical torque makes axial piston motors highly effective in various applications.
The Significance of Fixed Displacement
An axial piston fixed motor operates with a constant displacement. This means its swivel angle is predetermined and unchangeable. This characteristic distinguishes it from adjustable motors, which allow alteration of the swivel angle and, consequently, the displacement. The fixed displacement offers several specific advantages in hydraulic systems. It provides a constant flow rate, ensuring precise and predictable performance for steady operations, regardless of pressure variations. Fixed displacement motors also boast higher efficiency. Precision engineering and surface-hardening materials minimize wear and energy losses, which reduces operating costs.
Furthermore, these motors offer longer life and durability. Their sturdy construction allows them to handle high-pressure conditions and continuous operation, often exceeding 10,000 operating hours. Maintenance is also easier due to a simpler design with fewer moving parts, resulting in reduced downtime and lower maintenance costs. Fixed displacement motors are generally a cheaper choice, offering lower capital costs compared to Variable pumps. This provides a cost-effective solution with added durability and maintenance benefits. Theirinherent simplicity makes them easier to design, operate, and maintain because they lack complex control systems. This leads to increased reliability and consistent performance, making them ideal for tasks requiring steady torque and speed, such as simple conveyor systems where load and speed remain relatively constant.
Role in Hydrostatic Drive Systems
The A2FE Piston Motor plays a crucial role in hydrostatic drive systems. These systems transmit power through fluid pressure, offering smooth and precise control. The motor converts the hydraulic energy from the system into mechanical rotational energy, driving various machinery.
Open Circuit Applications
In open circuit applications, the hydraulic fluid returns directly to the reservoir after passing through the motor. This setup is common in systems where the motor operates intermittently or where precise speed control is less critical. Examples include auxiliary functions on mobile machinery or certain industrial processes. The A2FE Piston Motor provides reliable power conversion in these scenarios.
Closed Circuit Applications
Closed circuit applications recirculate the hydraulic fluid directly back to the pump inlet, forming a continuous loop. This design is typical for main propulsion drives or applications requiring continuous, precise speed and torque control, such as hydrostatic transmissions in vehicles. The A2FE Piston Motor excels in these demanding environments, offering consistent performance and high efficiency.
Key Characteristics of the A2FE Piston Motor
The A2FE Piston Motor stands out due to several key characteristics that contribute to its widespread use and reputation.
High Power Density
High power density is a hallmark of the A2FE Piston Motor. This means the motor delivers a significant amount of power relative to its size and weight. This characteristic is particularly advantageous in applications where space is limited, or weight reduction is crucial. It allows for more compact machine designs without compromising on performance.
Robust Design Principles
The design of the A2FE Piston Motor incorporates robust principles. Engineers select durable construction materials and employ precision manufacturing techniques. This ensures the motor can withstand harsh operating conditions, high pressures, and continuous heavy loads. The robust construction contributes significantly to its long service life and reliability in demanding industrial and mobile applications.
Deconstructing the A2FE Piston Motor: Key Components and Design
Axial Piston Principle Explained
Piston Movement and Torque Generation
The axial piston principle forms the operational core of the A2FE Piston Motor. Pressure oil enters the plunger hole, causing the plunger to extend. This extension makes the plunger press against a swash plate. This interaction generates a normal reaction force on the plunger. Engineers break this force down into axial and vertical components. The vertical force then creates a torque around the cylinder's center. This torque drives the motor shaft to rotate. Axial piston motors generate rotation by having pistons, aligned with the shaft, press against a swashplate. This action converts linear motion into rotational motion. The inclination angle of the swash plate is a critical factor. It influences the motor's torque, speed, and steering. A larger angle leads to greater torque and lower speed.
Fixed Displacement Mechanism
The A2FE Piston Motor operates with a fixed displacement. This means its swash plate maintains a constant, predetermined angle. This fixed angle ensures a consistent volume of fluid displaces with each revolution. Consequently, the motor delivers a predictable and steady output. This design simplifies control and enhances reliability in applications requiring constant speed or torque.
Core Components of the A2FE Piston Motor
The A2FE Piston Motor comprises several key components. Each part plays a vital role in its efficient operation.
Cylinder Barrel and Pistons
The cylinder barrel houses multiple pistons. These pistons move back and forth within their respective bores. The barrel rotates, carrying the pistons with it. This assembly forms the heart of the motor's power conversion.
Swash Plate and Its Function
The swash plate is a stationary, angled surface. Pistons press against this plate as the cylinder barrel rotates. The angle of the swash plate dictates the piston stroke. This interaction converts the linear motion of the pistons into the rotational motion of the cylinder barrel and drive shaft.
Drive Shaft and Output Power
The drive shaft connects directly to the rotating cylinder barrel. It transmits the mechanical rotational energy generated by the motor to the external load. This shaft delivers the motor's output power.
Control Plate and Fluid Distribution
The control plate, also known as a port plate, manages the flow of hydraulic fluid. It features precisely machined ports. These ports direct pressurized fluid to the extending pistons and allow spent fluid to exit from the retracting pistons. This controlled distribution ensures continuous and efficient operation of the motor.
How the A2FE Piston Motor Works: The Power Conversion Process
Hydraulic Fluid Inflow and Piston Movement
Pressurized Fluid Entry
The power conversion process in the A2FE Piston Motor begins with the entry of pressurized hydraulic fluid. This fluid flows from the hydraulic pump into the motor's inlet port. The control plate, or port plate, precisely directs this high-pressure fluid into specific cylinder bores within the rotating cylinder barrel. This controlled entry initiates the motor's operational cycle.
Piston Stroke and Force Generation
As the pressurized fluid enters the cylinder bores, it exerts force on the pistons. This force causes the pistons to extend outwards. The A2FE Piston Motor utilizes an axial tapered piston rotary group in a bent axis design. Within this configuration, the pistons are positioned at an angle relative to the drive shaft. As these pistons make direct contact with the drive shaft, they generate torque. The pressure applied directly influences the magnitude of this torque. This linear movement of the pistons, driven by hydraulic pressure, forms the initial stage of mechanical energy generation.
Swash Plate Interaction and Cylinder Barrel Rotation
Piston Force on the Swash Plate
The extending pistons press against the stationary swash plate. This plate is set at a fixed angle. Each piston, as it extends, applies a force component perpendicular to the swash plate's surface. This continuous interaction between the pistons and the angled swash plate is fundamental to the motor's operation.
Converting Linear to Rotary Motion
The A2FE Piston Motor effectively converts the linear motion of its pistons into rotational force. Piston motors utilize the linear movement of pistons. This reciprocating motion then transforms into rotational force. A swashplate mechanism achieves this conversion. As the pistons push against the angled swash plate, the force component parallel to the swash plate's surface creates a turning moment. This turning moment causes the entire cylinder barrel, along with the attached drive shaft, to rotate. The fixed angle of the swash plate ensures a consistent and predictable rotational output.
Fluid Outflow and Continuous Operation
Low-Pressure Fluid Exit
After the pistons complete their power stroke and retract, the hydraulic fluid, now at a lower pressure, exits the cylinder bores. The control plate directs this spent fluid to the motor's outlet port. From there, the fluid returns to the hydraulic reservoir or directly back to the pump in a closed-circuit system. This continuous circulation of fluid maintains the operational cycle.
Maintaining Constant Rotation
The sequential and continuous action of multiple pistons ensures constant rotation of the drive shaft. As some pistons extend under high pressure, others retract, expelling low-pressure fluid. This synchronized process creates a smooth, uninterrupted torque output. The A2FE Piston Motor thus maintains a steady and reliable rotational speed, efficiently converting hydraulic energy into mechanical power for various applications.
Advantages of the A2FE Piston Motor: Why Choose It?
High Efficiency and Power Density
Maximizing Energy Conversion

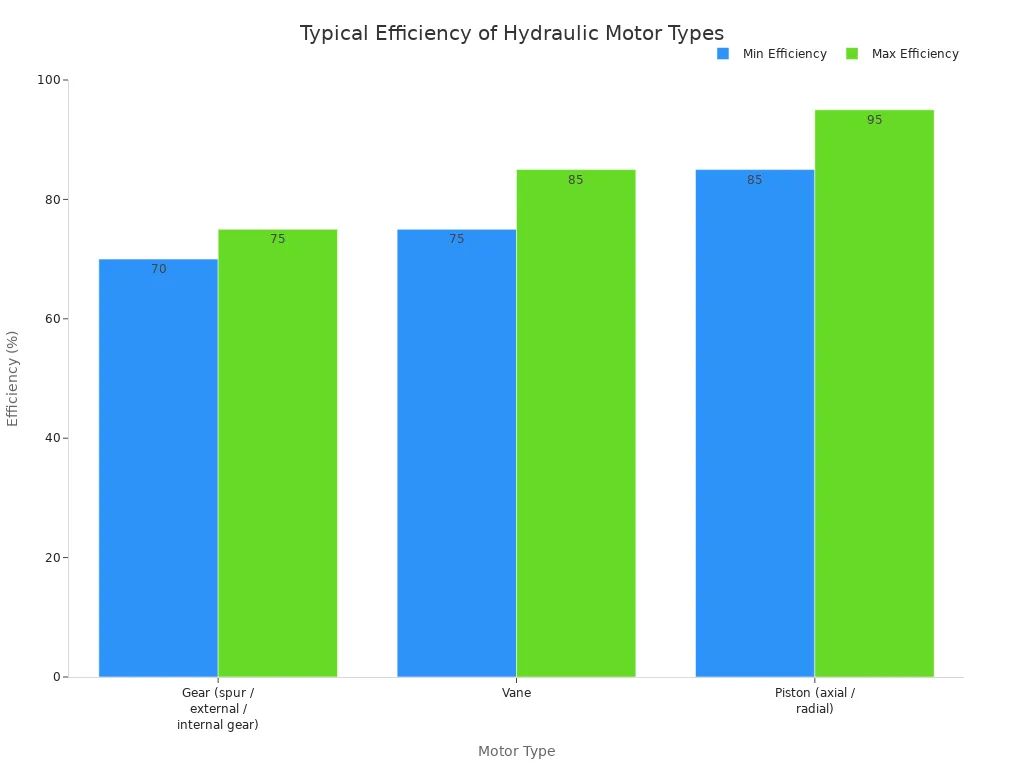

This motor efficiently converts hydraulic energy into mechanical rotational energy. Its precise internal design minimizes energy losses during operation. This high efficiency translates directly into less wasted power, reducing heat generation within the system. Lower heat generation, in turn, extends the lifespan of hydraulic fluids and other system components, leading to lower overall operating costs.
Compact Size for Power Output
The motor boasts high power density. This means it delivers substantial power from a relatively small and lightweight package. This characteristic allows engineers to design more compact machinery, optimizing space utilization. It also significantly reduces overall system weight, which proves crucial in mobile applications like construction equipment or agricultural machinery where weight directly impacts fuel efficiency and maneuverability.
Robustness and Long Service Life
Durable Construction Materials
Manufacturers construct this piston motor using high-quality, durable materials. These materials are specifically chosen to withstand the rigors of continuous operation and high-pressure environments. Precision machining and advanced surface treatments further enhance component strength and wear resistance. This robust construction ensures an extended operational life, providing long-term reliability for users.
Withstanding Demanding Conditions
The motor's design allows it to perform reliably under demanding conditions. It effectively handles high pressures, continuous heavy loads, and even temperature extremes. This resilience makes it highly suitable for harsh industrial settings, such as steel mills, and challenging mobile environments, like mining operations, where equipment faces constant stress and potential shock loads. Its ability to endure such environments minimizes downtime and maintenance requirements.
Wide Speed Range and Smooth Operation
Effective Across Various Speeds
Operators can use this motor effectively across a wide speed range. It maintains consistent performance and torque output from very low to high rotational speeds. This adaptability makes it suitable for diverse applications requiring varying operational speeds, from precise positioning tasks to high-speed drives. This versatility often simplifies system design, potentially reducing the need for additional speed-regulating components.
Minimal Pulsation and Vibration
The A2FE Piston Motor operates with minimal pulsation and vibration. While piston pumps inherently generate some noise and vibration due to reciprocating motion, its design incorporates features to mitigate these effects. Multiple pistons help average out flow pulsation, contributing significantly to smoother operation. Advanced design principles, often seen in high-performance piston motors, include optimized flow paths and compensation mechanisms. These features significantly reduce both fluid-borne noise from flow pulsations and structure-borne noise from mechanical vibration. This results in quieter operation, enhancing operator comfort and meeting regulatory compliance standards. Furthermore, reduced vibration protects other system components from premature wear, extending their service life.
Versatility and Reliability of the A2FE Piston Motor
Adaptability to Diverse Systems
The A2FE Piston Motor demonstrates remarkable adaptability across various hydraulic systems. Its robust design makes it suitable for a wide range of applications. This motor offers high versatility. The modular design of these motors simplifies maintenance and repair processes. This modularity reduces downtime and enhances productivity for operators. The A2FE Piston Motor is highly customizable. It offers flexibility to users. It provides various mounting options to suit different system requirements. The motor comes with different shaft sizes. This allows for integration into diverse mechanical setups. A range of control options are available. These options enable users to tailor the motor to specific operational needs. The A2FE hydraulic motor features a dynamic response. This makes it well-suited for applications requiring precise torque and speed control. Its advanced design facilitates smooth and accurate adjustments. It enables high-speed and torque modifications. This capability makes it a preferred choice in industries demanding fast and precise movement control. These industries include automotive, marine, and material handling.
Consistent Performance
The A2FE Piston Motor consistently delivers reliable performance. Its fixed displacement design ensures a predictable output. This motor maintains steady speed and torque under varying load conditions. Engineers design its internal components for durability. They use precision manufacturing techniques. This construction minimizes wear and tear. It also reduces the need for frequent maintenance. The motor's robust build allows it to operate effectively in harsh environments. It withstands high pressures and continuous operation. This consistent performance translates into operational efficiency. It also contributes to reduced operational costs over the motor's lifespan. Users can depend on this motor for critical applications. Its reliability makes it a trusted component in many industrial and mobile hydraulic systems.
Common Applications of the A2FE Piston Motor
The A2FE Piston Motor serves a wide array of industries. Its robust design and reliable performance make it a preferred choice for many demanding applications. This motor efficiently converts hydraulic power into mechanical rotation across various sectors.
Mobile Machinery Applications
Mobile machinery relies heavily on powerful and compact hydraulic components. The A2FE Piston Motor meets these demands effectively.
Construction Equipment
Construction machinery extensively uses the A2FE Piston Motor. Its high efficiency, speed, and pressure capacity are crucial for these demanding tasks. The motor's versatility allows its integration into various critical functions. Common applications include:
- Excavators
- Loaders
- Travel units
- Swing units
- Winch units
These machines benefit from the motor's ability to deliver consistent power under harsh conditions.
Agricultural Machinery
Agricultural equipment also utilizes this motor. Tractors, harvesters, and other farm machinery require reliable hydraulic power. The A2FE Piston Motor provides the necessary torque for driving implements and ensuring smooth operation in the field. Its durability helps withstand the challenging environments of agricultural work.
Industrial Applications
Industrial settings demand robust and efficient power transmission. The A2FE Piston Motor provides dependable solutions for many industrial processes.
Winches and Cranes
Winches and cranes frequently incorporate the A2FE Piston Motor. These lifting applications require precise control and high torque. The A2F Series includes various models suitable for these tasks. The A2FE models specifically function as fixed motors within this series.
| Series | Model Type | Motor Type |
|---|---|---|
| A2F | A2F63W2S8 | crane motor / variable motor |
| A2F | A2F80W2S8 | crane motor |
| A2FE | A2FE-BR6x | fixed motor |
| A2FE | A2FE-BR70 | fixed motor |
The A2FE models, such as A2FE-BR6x and A2FE-BR70, are categorized as fixed motors. They offer consistent performance for lifting and pulling operations.
Conveyor Systems
Conveyor systems in manufacturing and logistics often use this motor. It provides the steady, reliable power needed to move materials efficiently. The motor's smooth operation minimizes vibrations, which helps protect conveyed goods and extends the life of the conveyor system.
Marine and Offshore Equipment
The harsh marine environment requires exceptionally durable and reliable components. The A2FE Piston Motor performs well in these challenging conditions.
Deck Machinery
Ship deck machinery frequently employs this motor. Its robust construction resists corrosion and withstands continuous operation at sea. Specific applications include:
- Ship deck machinery
- Rudder ship machines
- Windlasses
- Cranes
These components are vital for safe and efficient vessel operation.
Drilling Rigs
Offshore drilling rigs also benefit from the motor's power and reliability. It drives various systems on these platforms, including winches and other heavy-duty equipment. The motor's ability to operate under high pressure and continuous load makes it ideal for the demanding nature of drilling operations.
Installation and Integration of the A2FE Piston Motor
Proper installation and integration are crucial for maximizing the performance and longevity of hydraulic motors. The A2FE Piston Motor offers design features that simplify these processes, making it a practical choice for various applications.
Space-Saving Construction
The A2FE Piston Motor features a design optimized for compact installations. This characteristic is particularly beneficial in machinery where space is at a premium.
Recessed Mounting Flange
The Bosch Rexroth A2FE Series 70 Axial Piston Motor incorporates a recessed mounting flange. This design choice significantly contributes to its space-saving construction. The recessed flange allows for a more compact installation footprint. This feature enables engineers to design smaller, more efficient hydraulic systems without compromising power output.
Easy Integration into Gearboxes
Engineers designed the A2FE Piston Motor for straightforward integration into gearboxes. Its compact form factor and standardized interfaces facilitate direct mounting. This direct integration reduces the need for additional adapters or complex coupling mechanisms. It simplifies the overall system design and assembly process. This ease of integration also contributes to a more robust and reliable connection between the motor and the driven equipment.
Operating Parameters for the A2FE Piston Motor
The A2FE Piston Motor operates effectively across a broad range of parameters. It delivers consistent performance under demanding conditions.
High-Speed Capabilities
Axial piston motors generally exhibit better high-speed capability compared to radial piston motors. Axial designs tolerate higher RPMs more effectively. They maintain better balance and avoid the inertial stresses that radial types experience at high speeds. The A2FE Piston Motor demonstrates impressive speed capabilities across its various sizes.

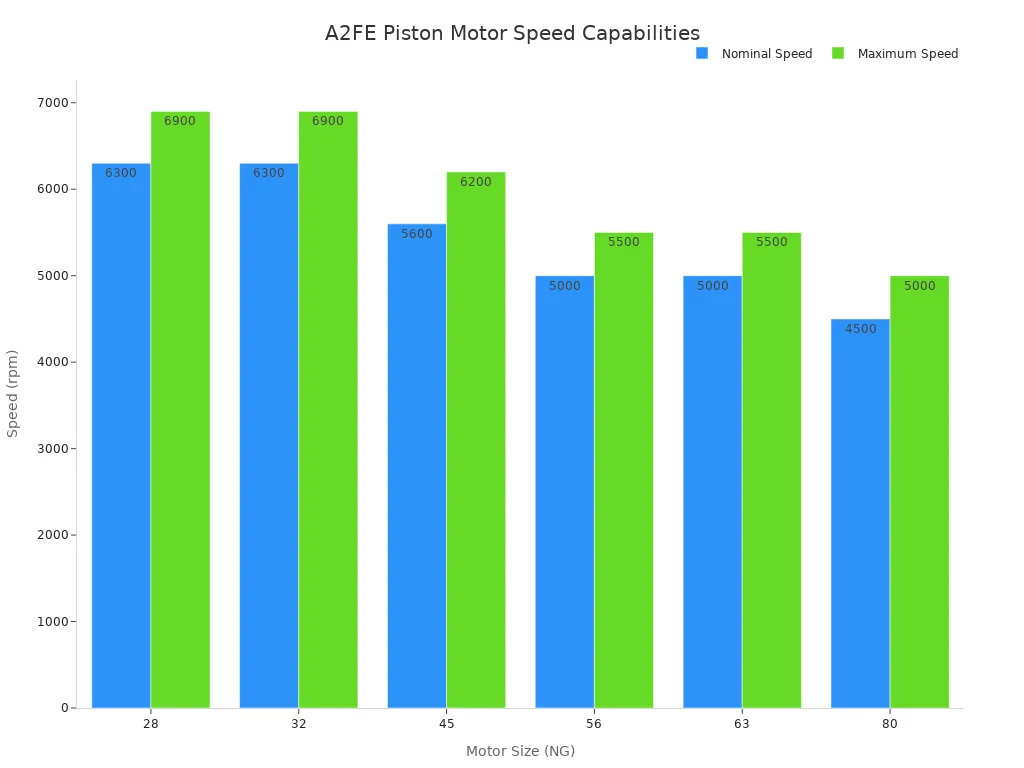

For instance, smaller sizes like 28 and 32 can achieve nominal speeds of 6300 rpm and maximum speeds of 6900 rpm. Larger models, such as size 80, still maintain high performance with nominal speeds of 4500 rpm and maximum speeds of 5000 rpm.
High-Pressure Operation
The A2FE Piston Motor is built to withstand high operating pressures. This capability ensures reliable power delivery in heavy-duty applications. Different series and sizes of the motor can handle varying maximum pressures.

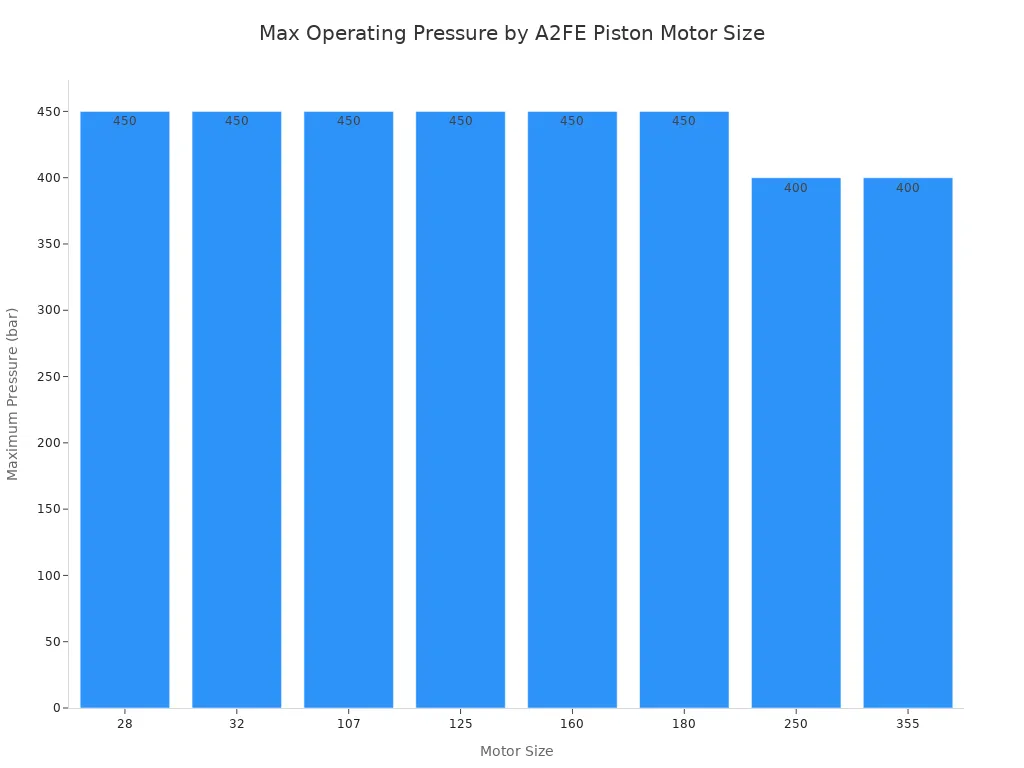

For series 6, sizes 28 to 180, the motor can operate at a maximum pressure of 450 bar. Larger sizes, specifically 250 and 355, are rated for a maximum operating pressure of 400 bar. This high-pressure tolerance makes the motor suitable for demanding hydraulic systems requiring significant force and power.
The A2FE Piston Motor stands as a cornerstone in hydraulic systems, known for its high efficiency, robustness, and versatility. Its bent-axis configuration and compact integration, featuring a central mounting flange, maximize performance and streamline installation. This plug-in motor offers an all-in-one design, simplifying deployment. Its fixed displacement axial piston design ensures reliable power transmission across diverse industries. A one-piece tapered piston with integrated rings, premium materials, and precision machining contribute to its extended operational life and sustained performance in extreme conditions. This motor's contribution to effective and dependable hydraulic power makes it an indispensable component in numerous applications.
FAQ
What is an A2FE Piston Motor?
The A2FE Piston Motor is an axial piston fixed motor. Engineers designed it for hydrostatic drives in open and closed circuits. It efficiently converts hydraulic energy into mechanical rotational energy. This motor features a robust design and high power density.
How does the A2FE Piston Motor work?
Pressurized hydraulic fluid enters the motor. It pushes pistons against a fixed-angle swash plate. This action converts the pistons' linear movement into the drive shaft's rotational motion. The motor thus generates mechanical power.
What does "fixed displacement" mean for this motor?
Fixed displacement means the motor's output volume per revolution remains constant. Its swash plate angle is predetermined and unchangeable. This characteristic ensures predictable and steady performance in various applications.
What are the main advantages of using an A2FE Piston Motor?
This motor offers high efficiency and power density. It features a robust design, ensuring a long service life. It also provides a wide speed range and smooth operation, making it versatile for many tasks.
Where are A2FE Piston Motors commonly used?
They find common use in mobile machinery, including construction and agricultural equipment. Industrial applications like winches, cranes, and conveyor systems also utilize them. Marine and offshore equipment benefit from their reliability.
Can the A2FE Piston Motor operate under high pressure?
Yes, the A2FE Piston Motor handles high operating pressures. Many models operate up to 450 bar. This capability ensures reliable power delivery in demanding hydraulic systems.
Is the A2FE Piston Motor easy to integrate into existing systems?
Its design includes a recessed mounting flange. This feature allows for compact installation. It also facilitates easy integration into gearboxes, simplifying system design and assembly.
